Diamond Embossed Aluminum Cladding

The EcoIn diamond embossed aluminum jacketing protects pipe and tank insulation outdoors, combining a stucco-look diamond pattern with a polysurlyn moisture barrier.

Quick Details:

Package: Plastic & Carton packing, In wooden or steel pallets.
Most common used alloy: 1060, 3003, 3105
Thickness: 0.4-1.2mm
Delivery time: 25-30 days
Payment terms: TT, LC, Westunion

Get A Quote

Introduction

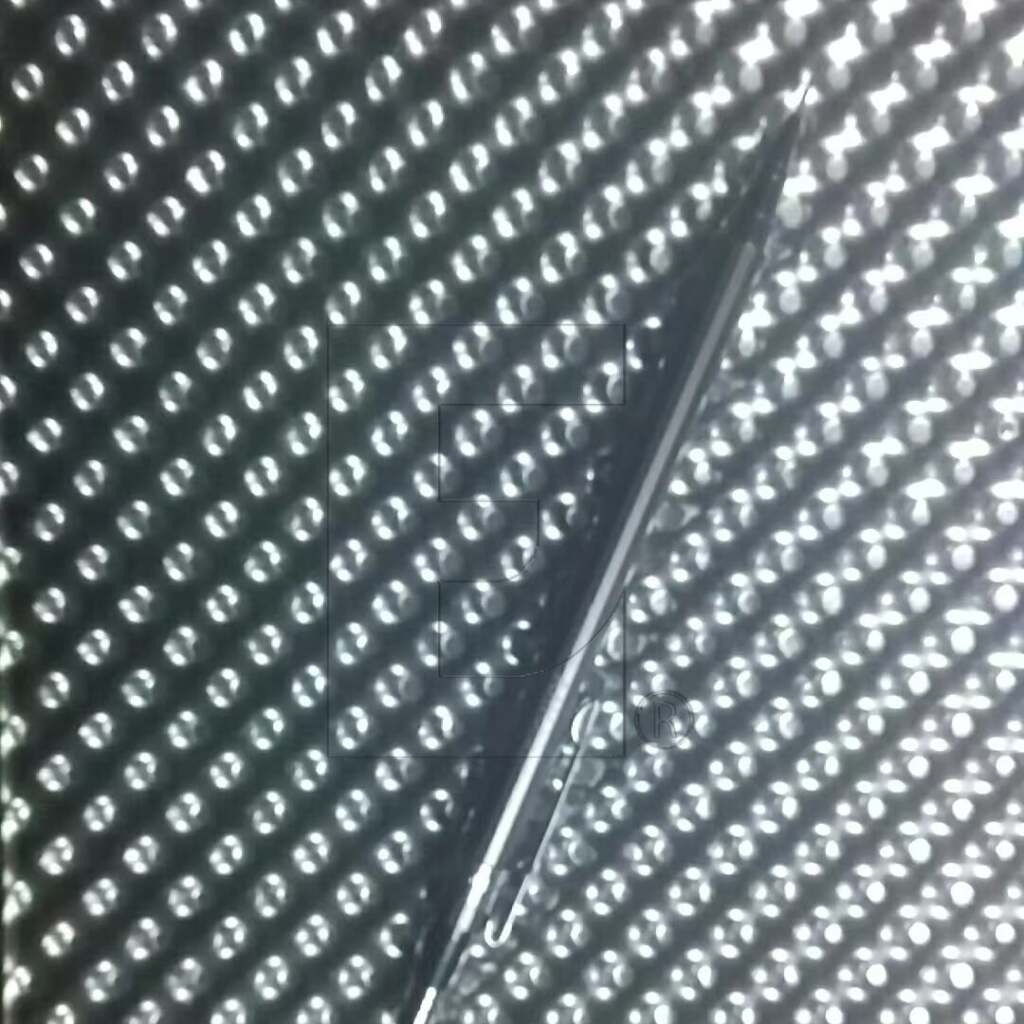

ECOIN Diamond Embossed Aluminum Jacketing is designed for mechanical insulation systems where durability, moisture protection, and a clean professional appearance are required. The diamond embossed aluminum jacketing pattern helps create small channels between the insulation and the jacketing surface, allowing incidental moisture to move more easily toward drainage points when proper system design is provided.

This jacketing is suitable for use on insulated pipes, vessels, tanks, ducts, and equipment in commercial and industrial applications. It can be supplied with a moisture barrier on the inner surface to help reduce direct contact between the metal jacket and the insulation, providing additional protection for long-term service performance.

Standard Sizes

Thickness(inch)	Thickness(mm)	Width(mm)	Length(m)	Suggested Application
0.016	0.4	914, 1000, 1219	30, 60, 90, coil or sheet	OD below 36”(914mm) insulated lines
0.020	0.5	914, 1000, 1219	30, 60, 90, coil or sheet	OD below 36”(914mm) insulated lines
0.024	0.6	914, 1000, 1219	30, 60, 90, coil or sheet	OD 36”-8′ (914mm-2.19m) insulated lines&equipment
0.032	0.8	914, 1000, 1219	30, 60, 90, coil or sheet	special applications where extra thickness and protection is required, such as fabricated tank head covers and other special fabrications
0.040	1	914, 1000, 1219	30, 60, 90, coil or sheet	special applications where heavy mechanical is required
0.050	1.2	914, 1000, 1219	30, 60, 90, coil or sheet	flat ducts or precipitators. Also recommended for areas subject to high wind conditions

Remarks: Other sizes available upon request.

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Zn	Mg	Ti	Cr	Other Elements		AL
									Each	Total
1060	0.25	0.35	0.05	0.03	0.05	0.03	0.03	–	0.03		99.6min
1100	Si+Fe=0.95		0.05-0.20	0.05	0.10	–	–	–	0.05	0.15	99.0min
3003	0.6	0.7	0.05-0.20	1.0-1.50	0.10	–	–	–	0.05	0.15	reminder
3105	0.6	0.7	0.30	0.30-0.80	0.40	0.20-0.80	0.10	0.20	0.05	0.15	reminder
5005	0.3	0.7	0.20	0.20	0.25	0.50-1.10	–	–	0.05	0.15	reminder

Features

EcoIn diamond embossed aluminum jacketing has below features:

Moisture Management – The diamond embossed aluminum jacketing surface helps promote air space and directional pathways, allowing unwanted moisture to move toward low points or drainage areas when weep holes or drainage ports are included in the system design.
Easy Installation – The patterned surface improves handling and alignment during installation, helping installers wrap and secure the jacketing more efficiently.
Clean Appearance – The diamond embossed aluminum jacketing finish gives the insulation system a modern, professional look while helping to reduce the visibility of minor scratches, dents, and handling marks.
Durable Protection – The diamond embossed aluminum jacketing provides a strong outer protective layer against physical damage, weather exposure, and daily jobsite wear.
Optional Moisture Barrier – A polyfilm or kraft/poly moisture barrier can be laminated to the inner surface to provide added protection between the insulation and metal jacketing.
Custom Options Available – Thickness, width, coil size, finish, moisture barrier type, and alloy can be customized according to project requirements.

Application

Ecoin Diamond Stucco Metal jacketing is recommended for various insulation system applications:

– Ideal for standard outdoor use on all types of pipe, vertical tank insulation systems up to 8 feet in outer diameter, and horizontal tanks.
– Suitable for indoor insulation systems up to 8 feet in outer diameter where enhanced damage resistance is desired.

Additional Advantages of Diamond Embossed Aluminum Jacketing:

– Demonstrates superior drainage capabilities compared to existing metal jacketing products.
– Boasts a unique aesthetic appearance that can signify an engineered approach to improved protection against Corrosion Under Insulation (CUI).
– Utilizes standard techniques for cutting, curling, and installation similar to common jacketing finishes.
– Compatible with all types of insulation materials.
– Includes a Polyfilm Moisture Barrier (PFMB) lining for added protection.

Diamond Embossed Aluminum Jacketing FAQ

Below are the questions buyers ask most about our diamond embossed aluminum jacketing. For material background, see this overview of aluminium.

What is diamond embossed aluminum jacketing?

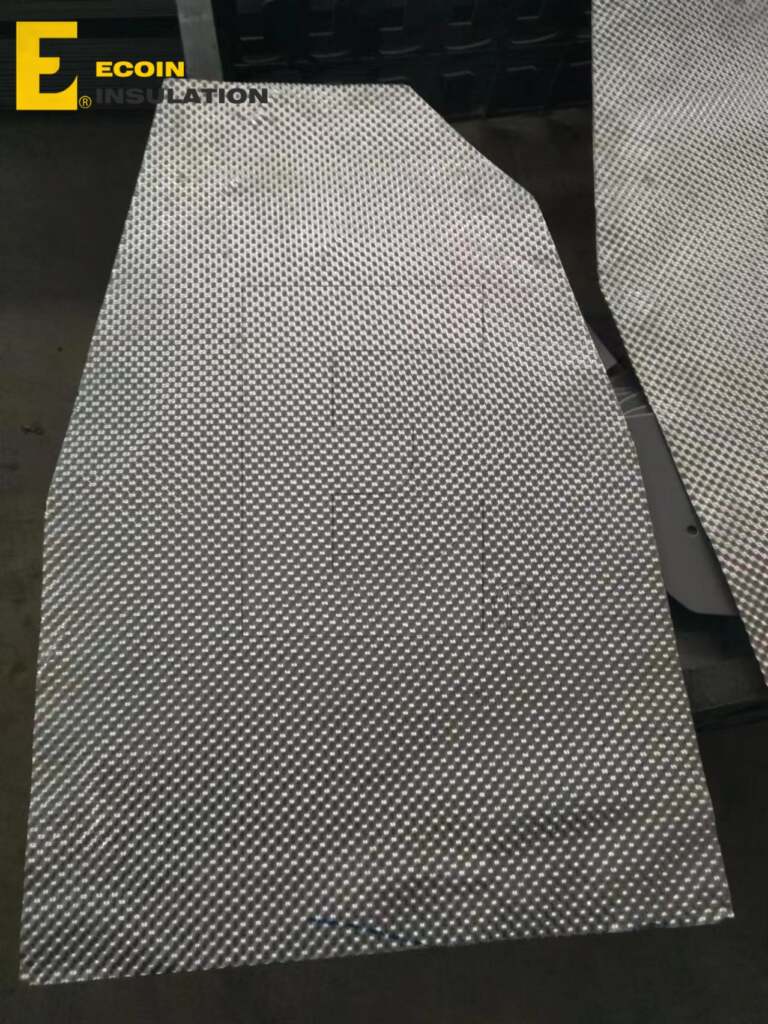

The diamond embossed aluminum jacketing is aluminum coil or sheet stamped with a diamond pattern. The embossing stiffens the diamond embossed aluminum jacketing, hides dents and fingerprints, and scatters light for a low-glare finish.

What sizes and alloys are available?

Standard diamond embossed aluminum jacketing comes in 0.3-1.0 mm thickness and up to 1219 mm width, in alloys 1060, 3003, and 5052, with or without a polysurlyn (PSMB) moisture barrier laminated on the inside.

Where is it used?

Typical diamond embossed aluminum jacketing applications include outdoor pipe insulation, tanks, and ductwork in refineries and power plants. It installs with our stainless steel banding straps over mineral wool insulation.

How is it packed and delivered?

Each diamond embossed aluminum jacketing coil is wrapped in plastic and carton, then loaded in wooden cases. Normal diamond embossed aluminum jacketing production and delivery time is 7-15 days, with TT, LC, and Western Union accepted.

Why buy from EcoIn?

EcoIn supplies the diamond embossed aluminum jacketing factory-direct in China. Every diamond embossed aluminum jacketing batch is checked for thickness tolerance and coating adhesion, and free diamond embossed aluminum jacketing samples are available before bulk orders.
