Glasswool Needle Mat （E-glass)

What we can provide

  • Fibreglass glasswool needle mat
  • High silica glasswool needle mat (needle felt)
  • Aluminum foil faced glasswool needle mat
  • Covered fiber polypropylene composite needle felt
  • Fibreglass hush pipe (automnbile , motorcycle system)
  • Glasswool needle mat processed products

Glasswool Needle Mat FAQ

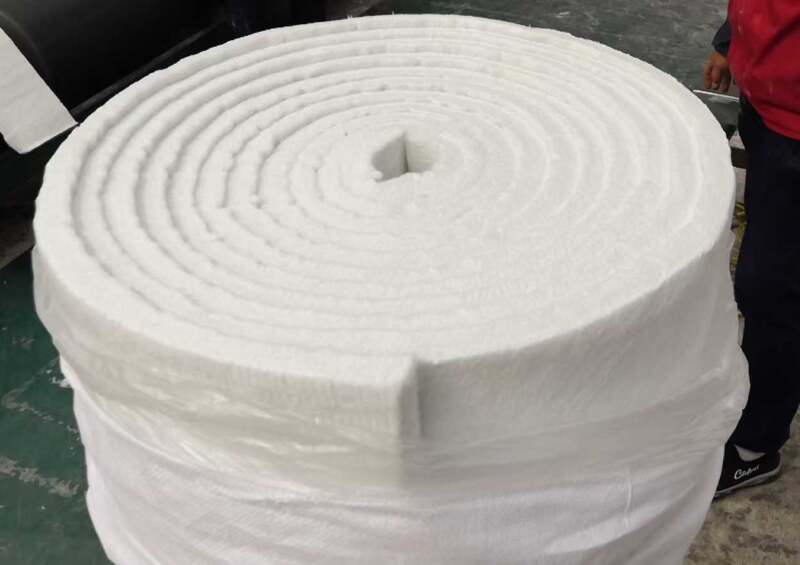

glasswool needle mat rolls produced by EcoIn

Below are the questions buyers ask most about our glasswool needle mat. For material background, see this overview of glass wool.

What is a glasswool needle mat?

The glasswool needle mat is an E-glass fiber blanket that is mechanically needled instead of resin-bonded. Because the glasswool needle mat contains no binder, it releases no smoke or odor at high temperature.

Standard E-glass glasswool needle mat serves continuously at 550°C, while the high-silica version withstands up to 1000°C for short periods. Glasswool needle mat thickness runs 3-25 mm with density of 100-180 kg/m3.

Typical glasswool needle mat applications include exhaust systems, engine compartments, welding blankets, expansion joints, and removable insulation jackets. The glasswool needle mat is often combined with our glass wool products in industrial projects.

Each glasswool needle mat roll is plastic-wrapped and palletized, and every glasswool needle mat shipment includes test reports. Normal production and delivery time is 7-15 days, with TT, LC, and Western Union accepted. It can ship together with glass wool blanket orders.

EcoIn produces the glasswool needle mat factory-direct in China. Every glasswool needle mat batch is tested for thickness tolerance and shot content, and custom glasswool needle mat widths are available for OEM jacket makers.

Products General Description

Fiberglass needle product felt is primarily used for fireproofing, thermal insulation, sound absorption, and noise reduction. It finds extensive applications in aerospace, maritime, automotive, construction, petroleum pipelines, household appliance insulation, and silencer manufacturing, among other fields.

Products General Description

1.A fire resistance, the chief chemical weapons is an excellent insulation material.

2.Brew small, high security water can effectively prevent condensed into dew.

3.Compressed restore rates, temperature shock.

4.The void fraction is high, excellent sound-absorbing nature.

5.Low rate of contraction in the high-temperature long life.

6.The low rate is good insulation materials(10mm thick glasswool needle mat equivalent to 50mm thick other heat preservation material).

7.The maximum use temperature is 710°C

8.Processed into barrelled, wind resistant fine.

9.Tailoring unique bending sexual favour

10.Non-binder. 11.Do not contain any harmful substances, not decay, meet environmental requirements.

Applications

1.The shipbuilding industry,steel, aluminium, petrochemical, power, chemical piping heat preservation insulating materials.

2.The auto exhausts system, engine lid, benches, insulated soundabsorbing materials.

3.Construction: On the roof, walls, floor panels, elevator shaft insulated sound- absorbing materials.

4.Air conditioning, appliances (dishwasher, microwave ovens breadmachine etc) heat preservation insulation materials.

5.Liquid reach mould plastic (AZDEL) and polypropylene films thin (GMT) to stop.

6.Machinery, electronics, generating set sound-ab-sor bing insulation materials.

7.The industrial furnace hot working equipment heat preservation insulation materials.

Standard Sizes:

Special products according to customers’ requirements

Model thickness（mm） width

（mm）

 density

（kg/m3）

 gram heavy

(g/m3)

 length(m)
CDME3 3 1050 130 390 40
CDME4 4 1050 130 520 40
CDME5 5 1050 140 700 40
CDME6 6 1050 140 840 30
CDME8 8 1050 150 1120 20
CDME10 10 1050 150 1500 20
CDME12 12 1050 150 1800 20
CDME15 15 1050 150 2400 15
CDME20 20 1200 150 3000 10
CDME25 25 1200 150 3750 10

Physical and chemical property

Cycle number (Hz) Absorption coefficient
Sound absorption properties of E-glass felt 125 0.32
250 0.76
500 0.94
1000 0.96
2000 0.95
4000 0.98
Temperature (℃) Thermal conductivity W/(m.k)
E-glass felt insulation rate

(density

200kg/m3)

 25 0.030
100 0.037
200 0.048
300 0.058
400 0.076
500 0.094
600 0.112
700 0.16
E-glass

main components

 SiO2 52-56%(weight)
Ai2O3 12-16
CaO 16-25
MgO 0-6
B2O3 8-13
Na2O、K2O 0-0.8
TiO2 0-0.4
Fe3O4 0.05-0.4

Performance Comparison

Name/

Performance

 E-glass Rock

wool

 Glass

wool

 Ceramic wool Rubber foam
Density 100-200 80-180 18-76 96-128 30-50
Thermal

resistance(℃)

 ≤710 ≤600 ≤250 1000-1430 -50-100
Pellet content (%） non ＜15 ≤0.3 ＞0.21-10.5 non
Thermal conductivity

(room temperature)

W/(m.k)

 0.030 0.035 0.038-0.06 0.034-0.09 0.034
Fire resistance incombustible A A incombustible B1
Aging resistance good Aging easily

Poor shock resistance

 Aging easily

Poor shock resistance

 Aging easily Aging easily
Water absorption (%) non ＜5 ＜2 non non
Sound-absorbing property good ＞98 ≥98.2 fine good
Tensile strength

N / 50mm

 Landscape 35.6

Vertical 92.7

 bad bad 0.04Mpa ≥0.5Mpa
Hydrophobic rate (%) good ＞98 ≥98.2 fine good
Chemicals No chemical compositionNo adhesive Containing certain toxicityadhesive Contains a phenolic resin adhesive

The mixture has some toxicity

 Contains adhesives but is stable Chemical synthesis
Machinability Characteristic flexibilityEasy to install stereotypes stereotypes Characteristic flexibilityEasy to install stereotypes

Fibreglass fabric felt cotton yarn don’t included deleterious slsment

Meterial Chemical name
Heavy metal Cadmium and cadmium compounds
Lead and lead compounds
Mercury and mercury compounds
Hexavalent chromium compounds
Organic chlorie compound PCB
PCN
CP
Organic bromine  compound PBB
PBDE
Organic tin compound Tributhyl tin category
Tributhyl tin category
Others Asbestos
Formlfehyde
Carbon chloride fluorine compounds
Chloride organic solvent
Azoben compounds

Fibreglass fabric felt cotton yarn don’t included deleterious slsment

Item performance
Thermal performance optecal performance Inorganic, non-burning
Liner thermal expansion coefficient is burning:4.8×10-6cm/cm/°C
Specifil heat: 0.19cal/gP
Heat transmission coefficienti：0.036w/m.k（70°C）
Heat temperature :710°C
Refraction factor (25°C）:1.55
Mechanical

Performance

 Glass fibre with a high tensile strength and stability length Tensile
strength:350kg/mm2
Elastic modules:7300kg/mm2
Horizontal tensile strength:35.6N/50mm
Vertical tensile strength: 97.2N/50mm
Electrical

Performance

 Fibreglass with good electrical insulation performance
Dielectric constant:102Hz-6.42,104Hz-6.32,1010Hz-6.11
Loss tangent number:102Hz-0.0042,1010Hz-0.006
Volume impedance factor:1010Ωcm
Corrosive Non-absorbent, non-corrosive, non-mildew
Cost Fibreglass is a good enganced materials, with the lower the cost of access to the same intensity effect
Density 100-200kg/m3
