Ecoin marine slab are specially developed for fire protection of A-constructions of deck and bulkhead. This product can be customized with reinforced aluminum foil, aluminum glass clothes (ALGC) or white/black glass clothes (GC).

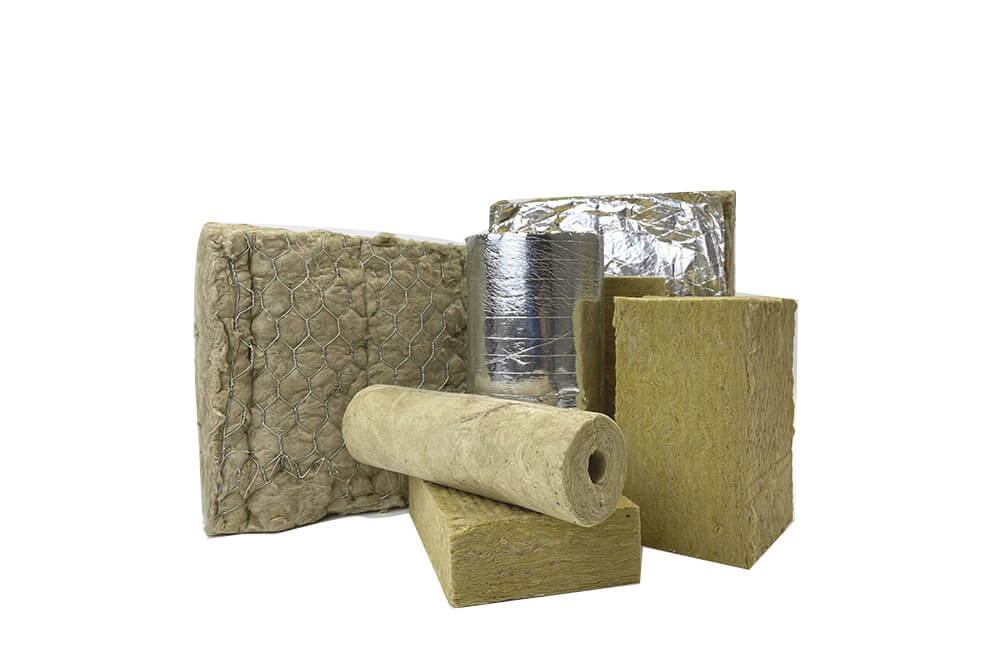

A60 marine mineral wool slab from EcoIn meets IMO SOLAS requirements for A60, A30, and A15 fire divisions on ships, offshore platforms, and industrial facilities. According to Wikipedia, mineral wool is a versatile man-made fibre used globally for thermal and acoustic insulation in demanding environments. EcoIn’s A60 marine mineral wool is factory-direct, ISO 9001 certified, with a 15–20 day lead time and TT/LC payment terms.
Standard Proposal
| Type | Solution | Density(kg/m3) | Thickness(mm) | Rw(dB) | α(w) | λ（10℃）(W/mk) | Certificates |
|---|---|---|---|---|---|---|---|
| Steel Deck | A60 | 120 |
Plate 40 Stiffener 40 |
48 | 0.85 | 0.034 | ABS/CCS/KR/MED |
| Steel Deck | A60 | 90 |
Plate 50 Stiffener 50 |
45 | 0.95 | 0.033 | ABS/LR/KR/MED/NK |
| Steel Deckd | A30 | 120 |
Plate 25 Stiffener 25 |
44 | 0.8 | 0.034 | ABS/KR/MED/NK |
| Steel Bulkhead | A60 | 120 |
Plate 40 Stiffener 40 |
48 | 0.85 | 0.034 | ABS/CCS/KR/MED |
| Steel Bulkhead | A60 | 120 |
Plate 25+40 Stiffener 40 |
50 | 0.9 | 0.034 | ABS/KR/MED |
| Steel Bulkhead | A60 | 120 |
Plate 65 Stiffener 40 |
50 | 0.9 | 0.034 | ABS/CCS/KR/MED |
| Steel Bulkhead | A60 | 90 |
Plate 50 Stiffener 50 |
45 | 0.95 | 0.033 | ABS/LR/KR/MED/NL |
| Steel Bulkhead | A60 | 90 |
Plate 75 Stiffener 25 |
49 | 0.95 | 0.033 | ABS/LR/KR/MED/NK |
| Steel Bulkhead | A30 | 120 |
Plate 50 Stiffener 25 |
48 | 0.9 | 0.034 | ABS/KR/MED/NK |
Main Properties and Technical Properties
| Properties | Value | Unit | Standard |
|---|---|---|---|
| Fire Classification |
Non-combustible Approval for A constructions |
– |
IMO A. 799(19) IMO A. 754(18) |
| Max Service Temperature |
750℃ for board 80℃ for facings |
℃ | ASTM C411 |
| Melting Point | ≥1000℃ | ℃ | – |
| Water Repellent | ≥99 | % | GB/T 10299 |
| Moisture Absorption | ≤0.02 | Vol% | ASTM C1104M |
| Facings |
ALGC, low flame spread GC, low flame spread Al foil, low flame spread |
– | IMO A. 653 (16) |
| Environment | Asbestos, CFCs, HCFCs, HFCs free | – | – |
Your Content Goes Here
A60 Marine Mineral Wool – Frequently Asked Questions
A60 marine mineral wool meets IMO SOLAS A60 fire division requirements. According to mineral wool insulation standards, A60-rated slabs must resist flame penetration and maintain structural integrity for a minimum of 60 minutes under fire exposure.
A60 marine mineral wool is a high-density mineral wool slab specifically engineered to satisfy IMO fire division class A60 — meaning the unexposed side stays below 140°C average (180°C max) for 60 minutes under standard fire test. EcoIn’s A60 marine mineral wool has density 90–120 kg/m³ and thickness from 25 to 75 mm, suitable for bulkheads, decks, and accommodation spaces on vessels.
A60, A30, and A15 marine mineral wool slabs all use the same base material but differ in thickness and density to achieve different fire-resistance durations. A60 marine mineral wool provides 60 minutes of fire protection, A30 provides 30 minutes, and A15 provides 15 minutes. EcoIn can supply all three ratings from the same production line.
EcoIn’s A60 marine mineral wool slab is available in density 90–120 kg/m³ and thickness 25–75 mm. Higher density A60 marine mineral wool provides better sound attenuation and structural rigidity for bulkhead installations. Custom specifications are available on request.
EcoIn’s A60 marine mineral wool is produced under ISO 9001 quality management. Products are type-tested to IMO Resolution MSC.61(67) and comply with MED (Marine Equipment Directive) requirements. Certificates of conformity and test reports can be provided with each shipment of A60 marine mineral wool.
Standard lead time for A60 marine mineral wool is 15–20 working days after order confirmation. EcoIn accepts TT (bank transfer) and LC (letter of credit) at sight. Heat-shrink packaging protects A60 marine mineral wool during sea freight. Minimum order: 1 pallet. FOB Qingdao or CIF worldwide available.
