Aluminum Jacket Elbow Cover 45 & 90 Degree 0.6mm

Quick Specifications — Aluminum Jacket Elbow Cover

Material: 0.6 mm (0.024 in) alloy 3003 aluminum
Angles: 45° and 90°
Finish: Plain or stucco embossed
Standard: ASTM C-450
Package: Carton packing
Delivery time: 7–15 days
Payment terms: TT, LC, Trade Assurance

Introduction

Aluminum Jacket Elbow Cover for Pipe Insulation — 45° & 90° Degrees

Aluminum jacket elbow cover is a precision-formed aluminum fitting designed to weather-protect the insulation on pipe elbows. EcoIn aluminum jacket elbow covers are sized to fit 45° and 90° elbows and are manufactured from 0.6 mm (0.024 in) thick alloy 3003 aluminum, available in plain or stucco embossed finish. According to Wikipedia’s pipe insulation article, maintaining continuous cladding over elbows and fittings is essential to prevent moisture ingress and maintain the thermal performance of the insulation system.

EcoIn aluminum jacket elbow covers are manufactured to meet ASTM C-450 specification, the standard for pre-formed insulation aluminum jacketing. Each aluminum jacket elbow cover is formed to closely match the elbow geometry, providing tight coverage that minimises water infiltration at the cladding joint. The covers can be supplied plain or with a stucco embossed pattern to match surrounding pipe cladding.

EcoIn aluminum jacket elbow covers are precision formed and sized to cover and weather-protect insulated elbows on pipework. They are formed from 0.6 mm thick, alloy 3003 aluminum and can be plain or stucco embossed to match the adjacent pipe jacketing. The aluminum jacket elbow covers are manufactured to meet ASTM C-450 specification and are available for pipe sizes from 1/2 inch to 36 inches nominal pipe size (NPS).

A properly fitted aluminum jacket elbow cover prevents water from entering the insulation system at the bend, one of the most vulnerable points in any pipe insulation system. EcoIn aluminum jacket elbow cover products are suitable for operating temperatures from −60°C to +150°C, covering steam tracer lines, hot and cold process pipework, and refrigerated piping systems.

Product Show

Standard Sizes

90 degree elbow cover:

Ins Thk
Pipe Size

1/2″

1″

1.5″

2″

2.5″

3″

3.5″

4″

4.33″

4.72″

5.12″

5.51″

5.91″

6.3″

6.7″

7.09″

7.49″

7.87″

8.46″

1/2″

#12

#23

#15

#25

3/4″

#12

#23

#15

#25

1″

#11

#12

#23

#15

#25

1-1/4″

#11

#12

#23

#15

#25

1-1/2″

#18

#23

#15

#25

#26

2″

#10

#18

#20

#24

#25

#26

2-1/2″

#13

#16

#20

#24

#25

#26

#31

#58

#59

#S11

#S12

#S15

#S16

#S17

3″

#14

#19

#22

#24

#25

#26

#31

#59

#S11

#S12

#S13

#S15

#S16

#S17

3-1/2″

#17

#21

#27

#30

#33

#31

#34

#60

#S11

#S12

#S13

#S16

#S17

#S24

#S25

4″

#17

#21

#27

#30

#33

#31

#34

#S12

#S13

#S18

#S24

#S25

4-1/2″

#28

#27

#30

#38

#31

#34

#40

#S4

#S13

#S14

#S22

#S19

#S20

#S24

#S25

#S26

5″

#28

#29

#36

#38

#39

#34

#40

#S4

#S6

#S14

#S22

#S19

#S20

#S21

#S25

#S26

#S32

6″

#32

#35

#37

#39

#44

#45

#57

#S6

#S14

#S22

#S19

#S20

#S21

#S25

#S26

#S32

#S33

7″

#35

#37

#39

#44

#45

#57

#52

#S22

#S56

#S20

#S29

#S30

#S31

#S32

#S33

8″

#41

#42

#43

#47

#49

#52

#53

#S22

#S56

#S28

#S29

#S30

#S32

#S33

9″

#42

#43

#47

#49

#52

#53

#S1

#S56

#S27

#S28

#S29

#S33

10″

#46

#50

#51

#55

#54

#S1

#S3

#S27

#S28

#S29

#S38

#S39

#S40

#S41

11″

#50

#51

#55

#56

#S1

#S3

N/A

#S28

#S29

#S35

#S39

#S40

12″

#48

#55

#56

#S1

#S3

#S5

#S28

#S34

#S35

#S36

#S37

#S40

#S51

#S52

14″

N/A

#S3

#S5

#S7

S34

#S35

#S36

#S37

#S44

#S50

#S51

#S52

15″

N/A

#S2

#S3

#S5

#S7

#S9

N/A

#S42

#S43

#S44

#S45

#S50

#S51

#S52

16″

#S4

#S5

#S7

#S9

#S10

#S42

#S43

#S44

#S50

#S51

#S52

#S54

17″

N/A

#S9

#S10

#S42

#S43

#S44

#S47

#S48

#S53

#S54

#S55

18″

#S5

#S8

#S9

#S10

N/A

#S47

#S48

#S49

#S53

#S54

#S55

20″

#S8

#S9

#S10

N/A

#S46

#S47

#S48

#S53

#S54

#S55

Remarks:

S is four-pieces type. Others are two-pieces type.

45 degree elbow cover:

Ins Thk Pipe Size	1″	1 1/2″	2″	2 1/2″	3″	3 1/2	4″
1/2	#1	#3	#5	#7	#8	#9	#10
3/4	#1	#3	#5	#7	#8	#9	#10
1	#2	#4	#6	#7	#8	#9	#10
1 1/4	#2	#5	#6	#7	#8	#9	#10
1 1/2	#3	#5	#7	#8	#9	#10	#11
2	#4	#6	#7	#8	#9	#10	#11
2 1/2	#5	#7	#8	#9	#10	#11	#12
3	#6	#7	#8	#9	#10	#11	#12
4	#7	#8	#9	#10	#11	#12	#13
6	#9	#10	#11	#12	#13	#14	#15
8	#11	#12	#13	#14	#15	#16	#17
10	#13	#14	#15	#16	#17	#18	#19
12	#15	#16	#17	#18	#19	#20	#21
14	#16	#17	#18	#19	#20	#21	#22
16	#18	#19	#20	#21	#22	#23	#24
18	#20	#21	#22	#23	#24	#25	#26
20	#22	#23	#24	#25	#26	#27	#28
24	#26	#27	#28	#29	#30

Tee elbow cover:

Ins Thk Pipe Size	1″	1 1/2″	2″	2 1/2″	3″	3 1/2	4″
1/2	#1	#3	#5	#7	#8	#9	#10
3/4	#1	#3	#5	#7	#8	#9	#10
1	#2	#4	#6	#7	#8	#9	#10
1 1/4	#2	#5	#6	#7	#8	#9	#10
1 1/2	#3	#5	#7	#8	#9	#10	#11
2	#4	#6	#7	#8	#9	#10	#11
2 1/2	#5	#7	#8	#9	#10	#11	#12
3	#6	#7	#8	#9	#10	#11	#12
4	#7	#8	#9	#10	#11	#12	#13
6	#9	#10	#11	#12	#13	#14	#15
8	#11	#12	#13	#14	#15	#16	#17
10	#13	#14	#15	#16	#17	#18	#19
12	#15	#16	#17	#18	#19	#20	#21
14	#16	#17	#18	#19	#20	#21	#22
16	#18	#19	#20	#21	#22	#23	#24
18	#20	#21	#22	#23	#24
20	#22	#23	#24

End Caps:

Ins Thk Pipe Size	1″	1 1/2″	2″	2 1/2″	3″	3 1/2	4″
1/2	#1	#3	#5	#7	#8	#9	#10
3/4	#1	#3	#5	#7	#8	#9	#10
1	#2	#4	#6	#7	#8	#9	#10
1 1/4	#2	#5	#6	#7	#8	#9	#10
1 1/2	#3	#5	#7	#8	#9	#10	#11
2	#4	#6	#7	#8	#9	#10	#11
2 1/2	#5	#7	#8	#9	#10	#11	#12
3	#6	#7	#8	#9	#10	#11	#12
4	#7	#8	#9	#10	#11	#12	#13
6	#9	#10	#11	#12	#13	#14	#15
8	#11	#12	#13	#14	#15	#16	#17
10	#13	#14	#15	#16	#17	#18	#19
12	#15	#16	#17	#18	#19	#20	#21
14	#16	#17	#18	#19	#20	#21	#22
16	#18	#19	#20	#21	#22	#23	#24
18	#20	#21	#22	#23	#24	#25	#26
20	#22	#23	#24	#25	#26	#27	#28
24	#26	#27	#28	#29	#30	#31	#32

Packing

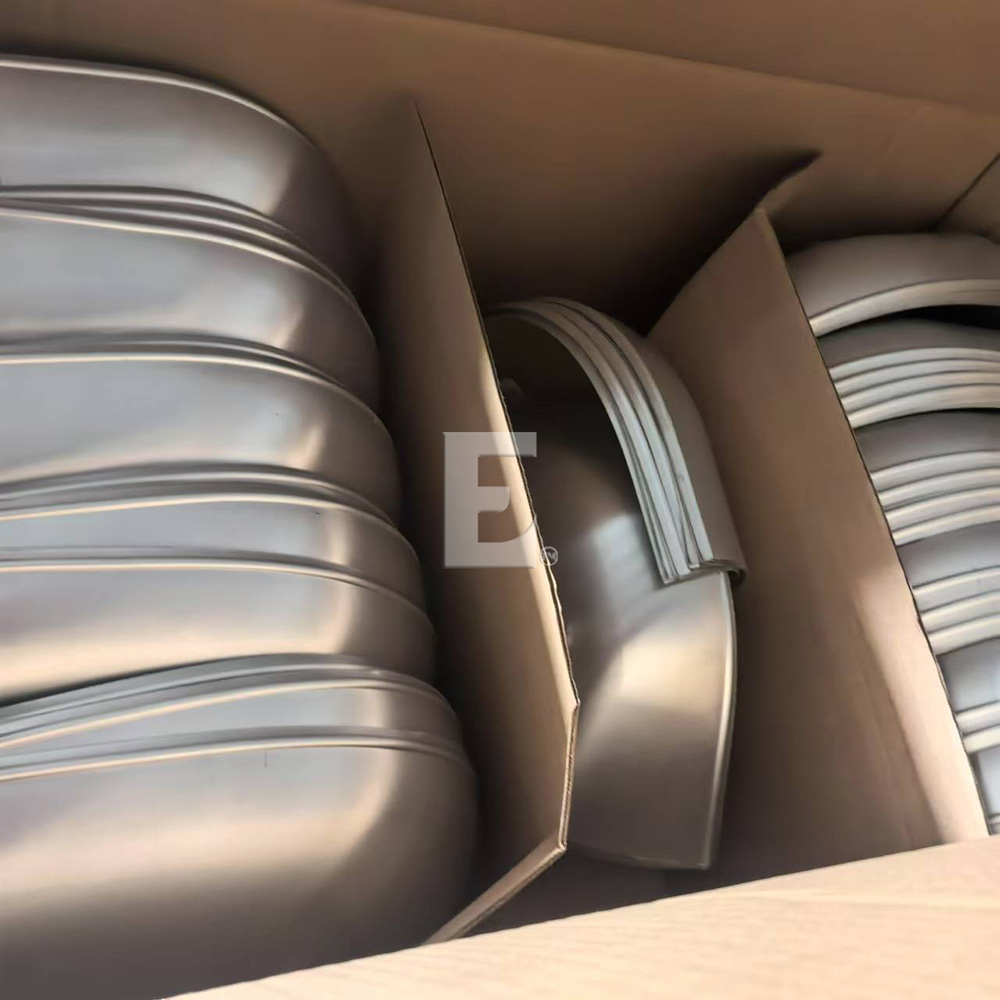

Prefabriated Aluminum Two Half Elbow Covers Fitting for Pipe Insulation

Package: by carton

Application

EcoIn Aluminum roll jacketing 90&45 Elbow Covers are available to fit:
* 45° and 90° and T pipe elbows
* Long or short radius pipe elbows
* Butt weld, socket weld, and screwed elbows
* Insulated pipe from 1/2″ to 12″ NPS

Aluminum Jacket Elbow Cover — Product Gallery

Aluminum Jacket Elbow Cover — FAQ

Frequently asked questions about EcoIn aluminum jacket elbow cover products.

What sizes does the aluminum jacket elbow cover come in?

EcoIn aluminum jacket elbow cover is available for pipe sizes from 1/2 inch to 36 inches NPS (nominal pipe size), for both 45° and 90° elbows. The aluminum jacket elbow cover is sized to fit over standard pre-formed pipe insulation, with a lap and butt joint system that provides weathertight coverage. Custom sizes and bend angles can be produced for non-standard applications. Contact our sales team with your pipe size and insulation thickness for an exact aluminum jacket elbow cover specification.

What standard does the aluminum jacket elbow cover meet?

EcoIn aluminum jacket elbow cover is manufactured to ASTM C-450, the Standard Specification for Prefabricated and Fabricated Insulation Aluminum Metal Jacketing for Pipe Systems. Compliance with ASTM C-450 ensures that the aluminum jacket elbow cover meets dimensional tolerances, alloy requirements, and thickness specifications for industrial pipe insulation jacketing. This is the standard required by most engineering contractors and project specifications in North America and internationally.

Can the aluminum jacket elbow cover be supplied with a moisture barrier?

Yes. EcoIn aluminum jacket elbow cover can be supplied with a polysurlyn moisture barrier laminated to the inner surface on request. The polysurlyn-backed aluminum jacket elbow cover provides enhanced corrosion protection on cold-service pipework or in outdoor environments where moisture ingress is a concern. Standard lead time for polysurlyn-backed aluminum jacket elbow cover is 10–20 days. Please specify this requirement when requesting a quotation.

What is the lead time for aluminum jacket elbow cover orders?

Standard production time for aluminum jacket elbow cover is 7–15 days from confirmed order. EcoIn accepts TT bank transfer, LC, and Alibaba Trade Assurance for aluminum jacket elbow cover orders. For large-volume orders or non-standard sizes, lead time may extend to 20–25 days. Sample pieces of aluminum jacket elbow cover are available for qualified buyers. Contact us with your specifications for a fast quotation.
