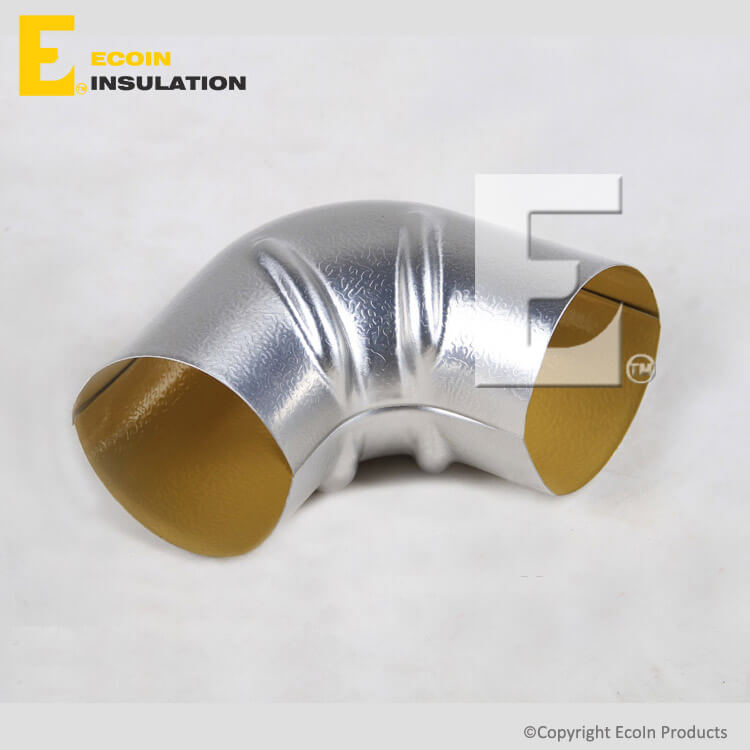

Aluminum jacket elbow cover 45 & 90 deg 0.6mm thick

Aluminum elbow 90 deg 0.6 mm thick

Quick Details:

Package: Carton packing
Most common used alloy: 1060, 3003
Thickness: 0.4mm, 0.6mm
Delivery time: 7-15 days
Payment terms: TT, LC, Westunion, Bitcoin, Trade Assurance

Introduction

EcoIn aluminum elbow covers are precision formed and are sized to cover and weather protect insulated elbows. They are formed from .024”(0.6mm) thick, 3003 alloy aluminum, it can be plain or stucco embossed. The elbow covers are manufactured to meet ASTM C-450 specification.

Product Show

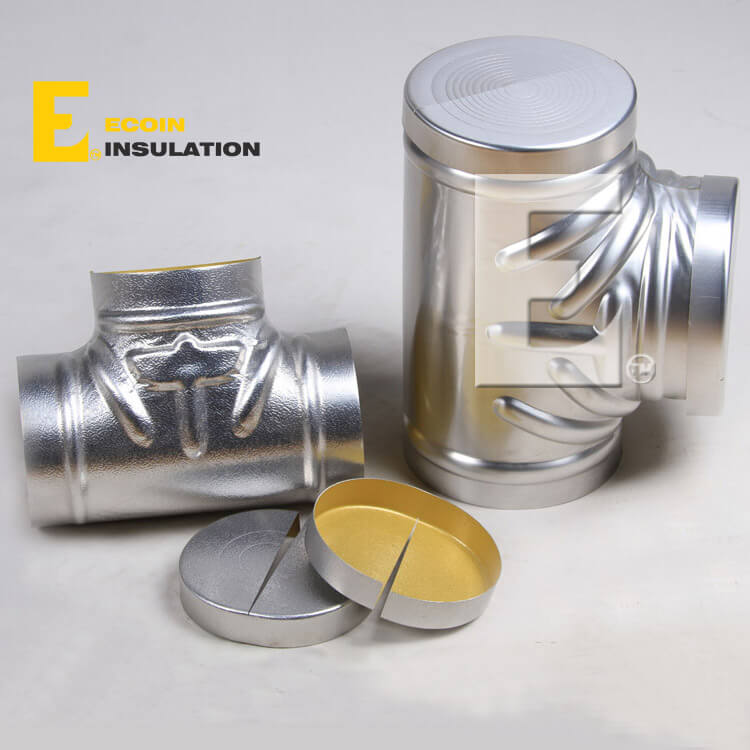

Standard Sizes

90 degree elbow cover:

Ins Thk
Pipe Size

1/2″

1″

1.5″

2″

2.5″

3″

3.5″

4″

4.33″

4.72″

5.12″

5.51″

5.91″

6.3″

6.7″

7.09″

7.49″

7.87″

8.46″

1/2″

#12

#23

#15

#25

3/4″

#12

#23

#15

#25

1″

#11

#12

#23

#15

#25

1-1/4″

#11

#12

#23

#15

#25

1-1/2″

#18

#23

#15

#25

#26

2″

#10

#18

#20

#24

#25

#26

2-1/2″

#13

#16

#20

#24

#25

#26

#31

#58

#59

#S11

#S12

#S15

#S16

#S17

3″

#14

#19

#22

#24

#25

#26

#31

#59

#S11

#S12

#S13

#S15

#S16

#S17

3-1/2″

#17

#21

#27

#30

#33

#31

#34

#60

#S11

#S12

#S13

#S16

#S17

#S24

#S25

4″

#17

#21

#27

#30

#33

#31

#34

#S12

#S13

#S18

#S24

#S25

4-1/2″

#28

#27

#30

#38

#31

#34

#40

#S4

#S13

#S14

#S22

#S19

#S20

#S24

#S25

#S26

5″

#28

#29

#36

#38

#39

#34

#40

#S4

#S6

#S14

#S22

#S19

#S20

#S21

#S25

#S26

#S32

6″

#32

#35

#37

#39

#44

#45

#57

#S6

#S14

#S22

#S19

#S20

#S21

#S25

#S26

#S32

#S33

7″

#35

#37

#39

#44

#45

#57

#52

#S22

#S56

#S20

#S29

#S30

#S31

#S32

#S33

8″

#41

#42

#43

#47

#49

#52

#53

#S22

#S56

#S28

#S29

#S30

#S32

#S33

9″

#42

#43

#47

#49

#52

#53

#S1

#S56

#S27

#S28

#S29

#S33

10″

#46

#50

#51

#55

#54

#S1

#S3

#S27

#S28

#S29

#S38

#S39

#S40

#S41

11″

#50

#51

#55

#56

#S1

#S3

N/A

#S28

#S29

#S35

#S39

#S40

12″

#48

#55

#56

#S1

#S3

#S5

#S28

#S34

#S35

#S36

#S37

#S40

#S51

#S52

14″

N/A

#S3

#S5

#S7

S34

#S35

#S36

#S37

#S44

#S50

#S51

#S52

15″

N/A

#S2

#S3

#S5

#S7

#S9

N/A

#S42

#S43

#S44

#S45

#S50

#S51

#S52

16″

#S4

#S5

#S7

#S9

#S10

#S42

#S43

#S44

#S50

#S51

#S52

#S54

17″

N/A

#S9

#S10

#S42

#S43

#S44

#S47

#S48

#S53

#S54

#S55

18″

#S5

#S8

#S9

#S10

N/A

#S47

#S48

#S49

#S53

#S54

#S55

20″

#S8

#S9

#S10

N/A

#S46

#S47

#S48

#S53

#S54

#S55

Remarks:

S is four-pieces type. Others are two-pieces type.

45 degree elbow cover:

Ins Thk Pipe Size	1″	1 1/2″	2″	2 1/2″	3″	3 1/2	4″
1/2	#1	#3	#5	#7	#8	#9	#10
3/4	#1	#3	#5	#7	#8	#9	#10
1	#2	#4	#6	#7	#8	#9	#10
1 1/4	#2	#5	#6	#7	#8	#9	#10
1 1/2	#3	#5	#7	#8	#9	#10	#11
2	#4	#6	#7	#8	#9	#10	#11
2 1/2	#5	#7	#8	#9	#10	#11	#12
3	#6	#7	#8	#9	#10	#11	#12
4	#7	#8	#9	#10	#11	#12	#13
6	#9	#10	#11	#12	#13	#14	#15
8	#11	#12	#13	#14	#15	#16	#17
10	#13	#14	#15	#16	#17	#18	#19
12	#15	#16	#17	#18	#19	#20	#21
14	#16	#17	#18	#19	#20	#21	#22
16	#18	#19	#20	#21	#22	#23	#24
18	#20	#21	#22	#23	#24	#25	#26
20	#22	#23	#24	#25	#26	#27	#28
24	#26	#27	#28	#29	#30

Tee elbow cover:

Ins Thk Pipe Size	1″	1 1/2″	2″	2 1/2″	3″	3 1/2	4″
1/2	#1	#3	#5	#7	#8	#9	#10
3/4	#1	#3	#5	#7	#8	#9	#10
1	#2	#4	#6	#7	#8	#9	#10
1 1/4	#2	#5	#6	#7	#8	#9	#10
1 1/2	#3	#5	#7	#8	#9	#10	#11
2	#4	#6	#7	#8	#9	#10	#11
2 1/2	#5	#7	#8	#9	#10	#11	#12
3	#6	#7	#8	#9	#10	#11	#12
4	#7	#8	#9	#10	#11	#12	#13
6	#9	#10	#11	#12	#13	#14	#15
8	#11	#12	#13	#14	#15	#16	#17
10	#13	#14	#15	#16	#17	#18	#19
12	#15	#16	#17	#18	#19	#20	#21
14	#16	#17	#18	#19	#20	#21	#22
16	#18	#19	#20	#21	#22	#23	#24
18	#20	#21	#22	#23	#24
20	#22	#23	#24

End Caps:

Ins Thk Pipe Size	1″	1 1/2″	2″	2 1/2″	3″	3 1/2	4″
1/2	#1	#3	#5	#7	#8	#9	#10
3/4	#1	#3	#5	#7	#8	#9	#10
1	#2	#4	#6	#7	#8	#9	#10
1 1/4	#2	#5	#6	#7	#8	#9	#10
1 1/2	#3	#5	#7	#8	#9	#10	#11
2	#4	#6	#7	#8	#9	#10	#11
2 1/2	#5	#7	#8	#9	#10	#11	#12
3	#6	#7	#8	#9	#10	#11	#12
4	#7	#8	#9	#10	#11	#12	#13
6	#9	#10	#11	#12	#13	#14	#15
8	#11	#12	#13	#14	#15	#16	#17
10	#13	#14	#15	#16	#17	#18	#19
12	#15	#16	#17	#18	#19	#20	#21
14	#16	#17	#18	#19	#20	#21	#22
16	#18	#19	#20	#21	#22	#23	#24
18	#20	#21	#22	#23	#24	#25	#26
20	#22	#23	#24	#25	#26	#27	#28
24	#26	#27	#28	#29	#30	#31	#32

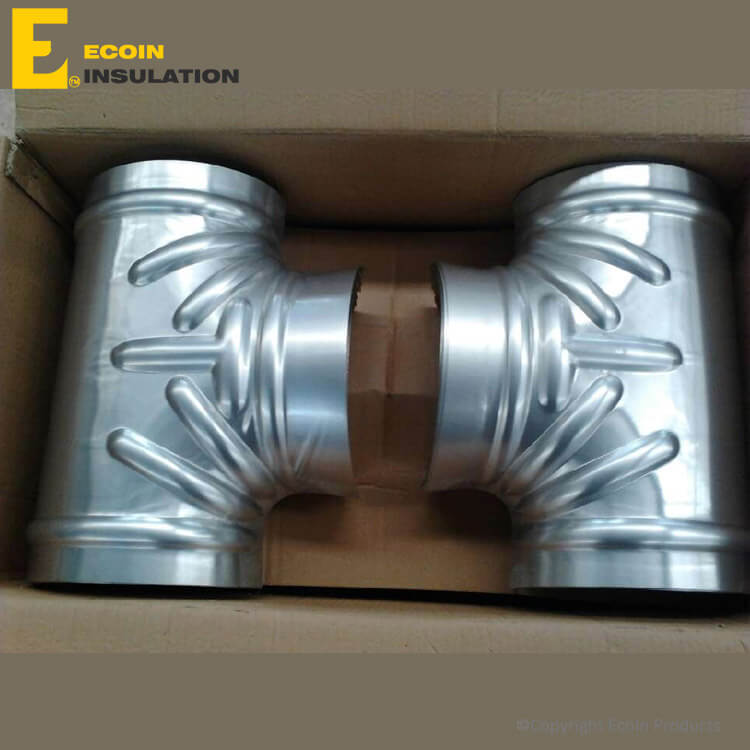

Packing

Prefabriated Aluminum Two Half Elbow Covers Fitting for Pipe Insulation

Package: by carton

Application

EcoIn Aluminum roll jacketing 90&45 Elbow Covers are available to fit:
* 45° and 90° and T pipe elbows
* Long or short radius pipe elbows
* Butt weld, socket weld, and screwed elbows
* Insulated pipe from 1/2″ to 12″ NPS
